TOKYO MARUI ORIGINAL PARTS
Tokyo Marui MTR16 G Edition Original Parts

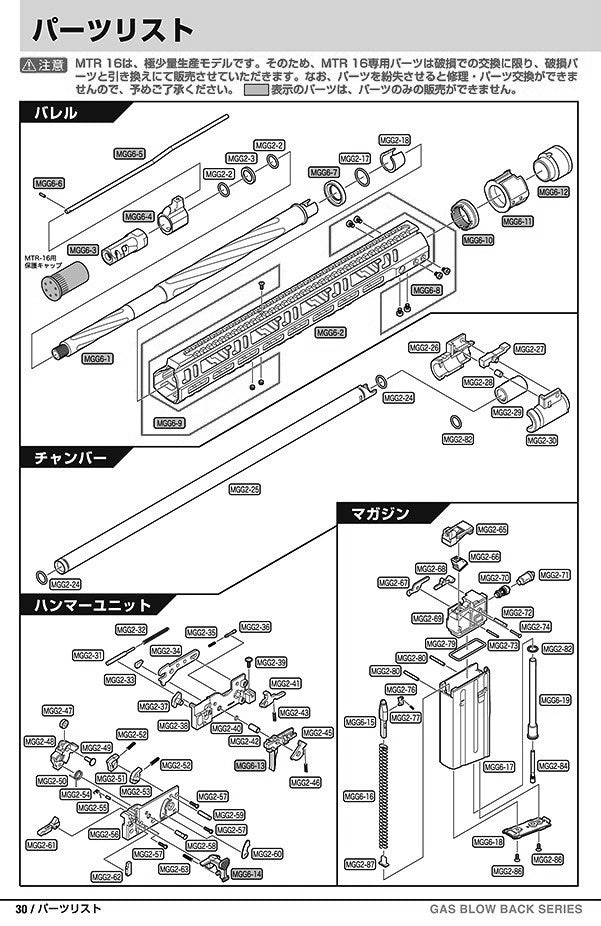

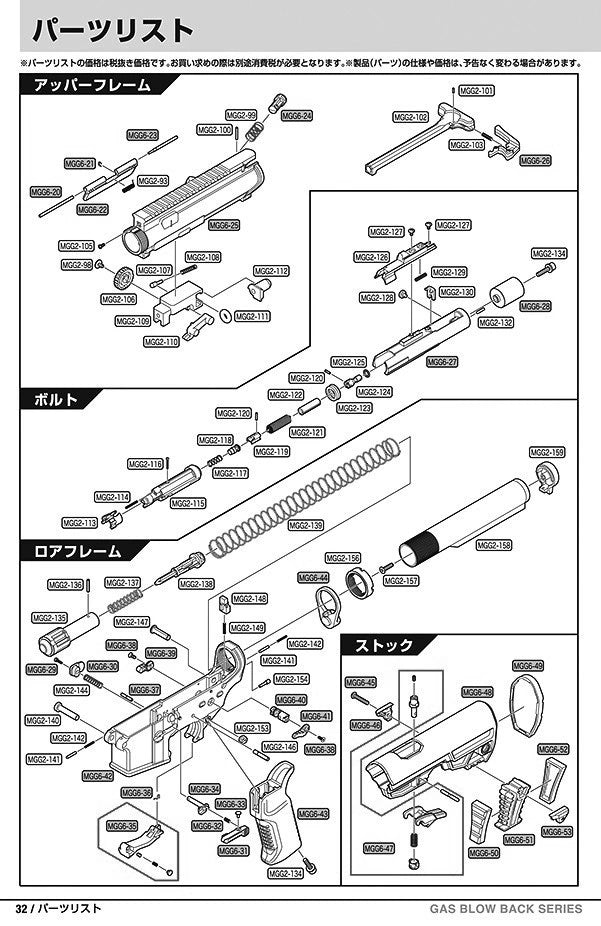

Select MTR16 G Edition original replacement parts using the exploded diagrams below.
MODELTokyo Marui MTR16 G Edition Original Parts
Choose original parts167 parts in this catalog
Select a part...
STOCK IN STOCKORDER SPECIAL ORDERSOLD SOLD OUT
Your partsAdjust quantities before adding to cart.
No parts selected yet.
-
MTR16G-MGG6-116-inch Outer BarrelSpecial order$190.00
-
MTR16G-MGG6-2M-LOK HandguardSpecial order$500.00
-
MTR16G-MGG6-3Muzzle BrakeSpecial order$40.00
-
MTR16G-MGG6-4Gas BlockSpecial order$24.00
-
MTR16G-MGG6-5Gas TubeSpecial order$24.00
-
MTR16G-MGG6-6Spring Pin (2x8)Special order$2.00
-
MTR16G-MGG6-7Outer Barrel SleeveSpecial order$37.50
-
MTR16G-MGG6-8Handguard Screw SetSpecial order$12.00
-
MTR16G-MGG6-9Gas Block Screw SetSpecial order$6.00
-
MTR16G-MGG6-10Barrel NutSpecial order$18.00
-
MTR16G-MGG6-11Barrel Lock RingSpecial order$12.00
-
MTR16G-MGG6-12Barrel LockSpecial order$37.50
-
MTR16G-MGG2-2O-Ring (13x4.2)Special order$4.40
-
MTR16G-MGG2-3Peel WasherSpecial order$7.20
-
MTR16G-MGG2-17O-Ring (18x2)Special order$5.20
-
MTR16G-MGG2-18Barrel ColletSpecial order$19.20
-
MTR16G-MGG2-24O-Ring (6x1)Special order$3.20
-
MTR16G-MGG2-25Inner BarrelSpecial order$84.00
-
MTR16G-MGG2-26Chamber Cover RightSpecial order$19.40
-
MTR16G-MGG2-27HOP Lever BSpecial order$11.20
-
MTR16G-MGG2-28Cushion Rubber TubeSpecial order$2.40
-
MTR16G-MGG2-29G26 ChamberSpecial order$19.20
-
MTR16G-MGG2-30Chamber Cover LeftSpecial order$19.40
-
MTR16G-MGG6-13TriggerSpecial order$18.00
-
MTR16G-MGG6-14Bolt CatchSpecial order$18.00
-
MTR16G-MGG2-31Bolt Catch DSpecial order$13.20
-
MTR16G-MGG2-32Bolt Catch D SpringSpecial order$5.20
-
MTR16G-MGG2-33Bolt Catch CushionSpecial order$7.20
-
MTR16G-MGG2-34Bolt Catch BSpecial order$19.20
-
MTR16G-MGG2-35Selector Click SpringSpecial order$3.20
-
MTR16G-MGG2-36Selector ClickSpecial order$7.20
-
MTR16G-MGG2-37Bolt Catch CSpecial order$15.20
-
MTR16G-MGG2-38Inner Frame RightSpecial order$23.05
-
MTR16G-MGG2-39Screw (M3x10 Pan Flange S-Tight)Special order$3.20
-
MTR16G-MGG2-40Trigger Shaft RingSpecial order$3.20
-
MTR16G-MGG2-41DisconnectorSpecial order$17.20
-
MTR16G-MGG2-42Trigger CollarSpecial order$7.20
-
MTR16G-MGG2-43Disconnector SpringSpecial order$3.20
-
MTR16G-MGG2-45Trigger BSpecial order$15.20
-
MTR16G-MGG2-46Trigger SpringSpecial order$3.20
-
MTR16G-MGG2-47Hammer RollerSpecial order$11.20
-
MTR16G-MGG2-48HammerSpecial order$19.20
-
MTR16G-MGG2-49Roller ShaftSpecial order$13.20
-
MTR16G-MGG2-50Hammer SpringSpecial order$5.20
-
MTR16G-MGG2-51Full-Auto SearSpecial order$15.20
-
MTR16G-MGG2-52Sear SpringSpecial order$3.20
-
MTR16G-MGG2-53Semi-Auto SearSpecial order$15.20
-
MTR16G-MGG2-54Knocker SpringSpecial order$3.20
-
MTR16G-MGG2-55Spring (2x6)Special order$2.40
-
MTR16G-MGG2-56Inner Frame LeftSpecial order$23.05
-
MTR16G-MGG2-57Screw (M2.6x10 Pan S-Tight)Special order$3.20
-
MTR16G-MGG2-58Hammer ShaftSpecial order$7.20
-
MTR16G-MGG2-59Sear ShaftSpecial order$7.20
-
MTR16G-MGG2-60Trigger BarSpecial order$11.20
-
MTR16G-MGG2-61KnockerSpecial order$17.20
-
MTR16G-MGG2-62Slit CoverSpecial order$7.20
-
MTR16G-MGG2-63Bolt Catch SpringSpecial order$3.20
-
MTR16G-MGG6-1520-Round FollowerSpecial order$9.20
-
MTR16G-MGG6-1620-Round Magazine SpringSpecial order$17.20
-
MTR16G-MGG6-1720-Round Magazine CaseSpecial order$50.00
-
MTR16G-MGG6-1820-Round Magazine BottomSpecial order$19.40
-
MTR16G-MGG6-19Regulator ValveSpecial order$21.20
-
MTR16G-MGG2-65Magazine LipSpecial order$13.20
-
MTR16G-MGG2-66Magazine GasketSpecial order$13.20
-
MTR16G-MGG2-67Follower Link ASpecial order$9.20
-
MTR16G-MGG2-68Follower Link BSpecial order$9.20
-
MTR16G-MGG2-69Magazine InnerSpecial order$32.50
-
MTR16G-MGG2-70Exhaust ValveSpecial order$19.20
-
MTR16G-MGG2-71Valve AssistSpecial order$17.20
-
MTR16G-MGG2-72Valve Assist PinSpecial order$5.20
-
MTR16G-MGG2-73Magazine Lip PinSpecial order$5.20
-
MTR16G-MGG2-74Magazine Rivet PinSpecial order$5.20
-
MTR16G-MGG2-76Follower LeverSpecial order$4.40
-
MTR16G-MGG2-77Follower Lever SpringSpecial order$3.20
-
MTR16G-MGG2-79Magazine Inner GasketSpecial order$7.20
-
MTR16G-MGG2-80Magazine Case PinSpecial order$7.20
-
MTR16G-MGG2-82O-Ring (10x6.1)Special order$3.20
-
MTR16G-MGG2-84Charging ValveSpecial order$8.40
-
MTR16G-MGG2-86Screw (M3x8 Hex Countersunk)Special order$7.20
-
MTR16G-MGG2-87Magazine Spring GuideSpecial order$7.20
-
MTR16G-MGG6-20Dust Cover Shaft LSpecial order$8.00
-
MTR16G-MGG6-21Retaining Ring (2.5 E)Special order$2.00
-
MTR16G-MGG6-22Dust Cover AssySpecial order$20.00
-
MTR16G-MGG6-23Dust Cover Shaft SSpecial order$8.00
-
MTR16G-MGG6-24Assist Knob CoverSpecial order$12.00
-
MTR16G-MGG6-25MTR 16 Upper FrameSpecial order$184.00
-
MTR16G-MGG6-26Charging Handle LatchSpecial order$30.00
-
MTR16G-MGG2-93Dust Cover SpringSpecial order$4.40
-
MTR16G-MGG2-99Forward Assist Knob SpringSpecial order$5.20
-
MTR16G-MGG2-100Spring Pin (2x16)Special order$5.20
-
MTR16G-MGG2-101Spring Pin (1.5x6)Special order$2.40
-
MTR16G-MGG2-102Charging HandleSpecial order$29.05
-
MTR16G-MGG2-103Handle Latch SpringSpecial order$3.20
-
MTR16G-MGG2-105Screw (M2.6x6 Pan S-Tight)Special order$3.20
-
MTR16G-MGG2-106HOP DialSpecial order$7.20
-
MTR16G-MGG2-107HOP Click PinSpecial order$3.20
-
MTR16G-MGG2-108HOP Click Pin SpringSpecial order$3.20
-
MTR16G-MGG2-109HOP Dial BaseSpecial order$21.40
-
MTR16G-MGG2-110HOP Lever ASpecial order$11.20
-
MTR16G-MGG2-111O-Ring (2.84x2.62)Special order$3.20
-
MTR16G-MGG2-112DamperSpecial order$9.20
-
MTR16G-MGG6-27BoltSpecial order$40.00
-
MTR16G-MGG6-28Bolt BSpecial order$18.00
-
MTR16G-MGG2-113Locking LugSpecial order$9.20
-
MTR16G-MGG2-114Locking Lug SpringSpecial order$3.20
-
MTR16G-MGG2-115PistonSpecial order$31.40
-
MTR16G-MGG2-116Screw (2.6x16 Pan)Special order$3.20
-
MTR16G-MGG2-117Piston Valve SpringSpecial order$5.20
-
MTR16G-MGG2-118Piston ValveSpecial order$9.20
-
MTR16G-MGG2-119Valve StopperSpecial order$9.20
-
MTR16G-MGG2-120Spring Pin (2x8)Special order$3.20
-
MTR16G-MGG2-121Piston Return SpringSpecial order$13.20
-
MTR16G-MGG2-122Vibration Damping TubeSpecial order$7.20
-
MTR16G-MGG2-123Piston CupSpecial order$15.20
-
MTR16G-MGG2-124Firing PinSpecial order$13.20
-
MTR16G-MGG2-125O-Ring (5.8x1.5)Special order$3.20
-
MTR16G-MGG2-126Bolt Carrier KeySpecial order$21.20
-
MTR16G-MGG2-127Screw (M3x6 Truss S-Tight)Special order$3.20
-
MTR16G-MGG2-128Bolt RollerSpecial order$13.20
-
MTR16G-MGG2-129Bolt Carrier Key SpringSpecial order$4.40
-
MTR16G-MGG2-130Firing Pin StopperSpecial order$9.20
-
MTR16G-MGG2-132Bolt Roller PinSpecial order$3.20
-
MTR16G-MGG2-134Screw (M5x20 Hex Socket)Special order$7.20
-
MTR16G-MGG6-29Screw (M2x8 LR Thin Flat Bolt)Special order$1.20
-
MTR16G-MGG6-30Magazine Catch ButtonSpecial order$12.00
-
MTR16G-MGG6-31Ambi Magazine Catch LeverSpecial order$20.00
-
MTR16G-MGG6-32Ambi Magazine Catch Lever SpringSpecial order$2.00
-
MTR16G-MGG6-33Magazine Catch PinSpecial order$4.00
-
MTR16G-MGG6-34Magazine CatchSpecial order$12.00
-
MTR16G-MGG6-35Trigger Guard AssySpecial order$16.00
-
MTR16G-MGG6-36Trigger Guard Pin StopperSpecial order$2.00
-
MTR16G-MGG6-37Trigger Guard PinSpecial order$4.00
-
MTR16G-MGG6-38Screw (M3x8 LR Countersunk)Special order$2.00
-
MTR16G-MGG6-39Selector Lever RSpecial order$16.00
-
MTR16G-MGG6-40SelectorSpecial order$12.00
-
MTR16G-MGG6-41Selector Lever LSpecial order$16.00
-
MTR16G-MGG6-42MTR 16 Lower FrameSpecial order$280.00
-
MTR16G-MGG6-43GripSpecial order$32.50
-
MTR16G-MGG6-44QD End PlateSpecial order$30.00
-
MTR16G-MGG2-135Buffer Spring GuideSpecial order$20.50
-
MTR16G-MGG2-136Spring Pin (2.5x16)Special order$5.20
-
MTR16G-MGG2-137Buffer Guide SpringSpecial order$13.20
-
MTR16G-MGG2-138Buffer Spring Guide BSpecial order$17.20
-
MTR16G-MGG2-139Buffer SpringSpecial order$23.50
-
MTR16G-MGG2-140Frame PinSpecial order$15.20
-
MTR16G-MGG2-141Frame Pin StopperSpecial order$5.20
-
MTR16G-MGG2-142Frame Pin Stopper SpringSpecial order$3.20
-
MTR16G-MGG2-144Magazine Catch SpringSpecial order$7.20
-
MTR16G-MGG2-146Trigger ShaftSpecial order$9.20
-
MTR16G-MGG2-147Takedown PinSpecial order$15.20
-
MTR16G-MGG2-148Buffer StopperSpecial order$15.20
-
MTR16G-MGG2-149Buffer Stopper SpringSpecial order$3.20
-
MTR16G-MGG2-153Hex Nut (M5)Special order$4.40
-
MTR16G-MGG2-154Buffer Stopper PinSpecial order$7.20
-
MTR16G-MGG2-156Buffer Ring NutSpecial order$19.20
-
MTR16G-MGG2-157Screw (M4x16 S-Tight)Special order$5.20
-
MTR16G-MGG2-158Buffer TubeSpecial order$120.00
-
MTR16G-MGG2-159Buffer Tube EndSpecial order$20.05
-
MTR16G-MGG6-45Screw (M4x22 Hex Socket Button Bolt)Special order$4.00
-
MTR16G-MGG6-46Stock Extension ClampSpecial order$12.00
-
MTR16G-MGG6-47Stock Release Lever SetSpecial order$16.00
-
MTR16G-MGG6-48StockSpecial order$120.00
-
MTR16G-MGG6-49Butt PlateSpecial order$27.00
-
MTR16G-MGG6-50Stock Extension Plate ASpecial order$16.00
-
MTR16G-MGG6-51Stock ExtensionSpecial order$12.00
-
MTR16G-MGG6-52Stock Extension Plate BSpecial order$16.00
-
MTR16G-MGG6-53Stock Extension Clamp NutSpecial order$12.00
