TOKYO MARUI ORIGINAL PARTS
Tokyo Marui Type 89 5.56mm Rifle Fixed Stock Original Parts

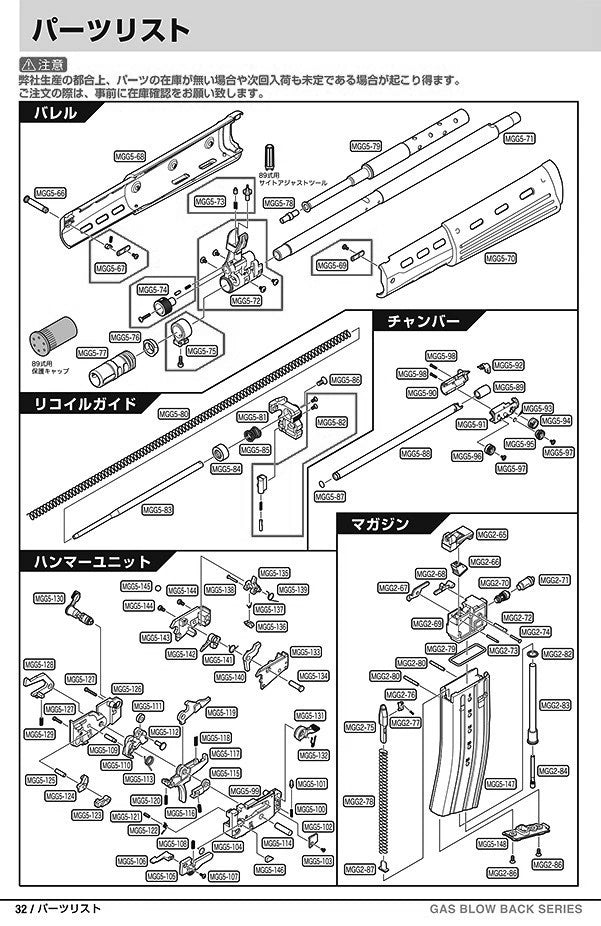

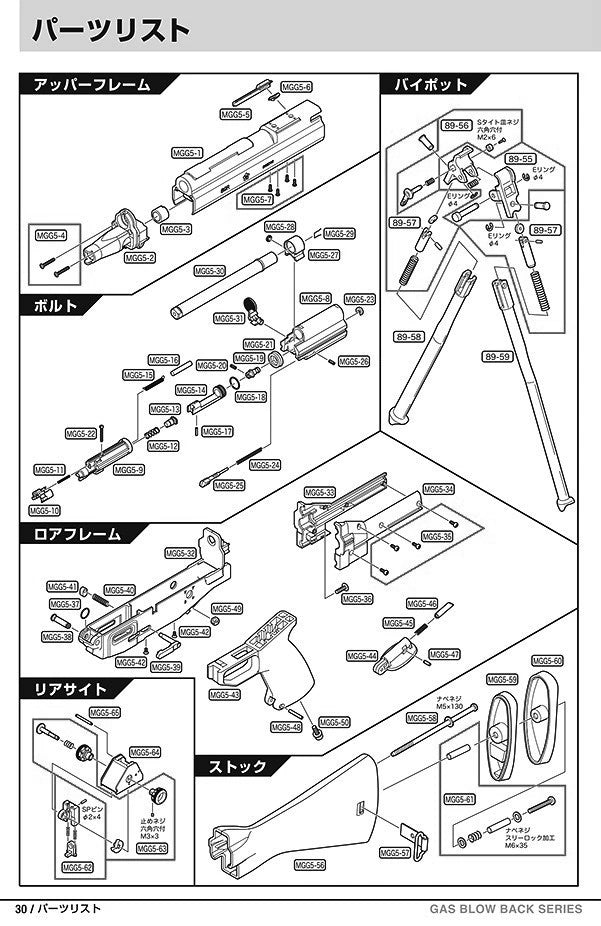

Select Type 89 5.56mm Rifle Fixed Stock original replacement parts using the exploded diagrams below.
MODELTokyo Marui Type 89 5.56mm Rifle Fixed Stock Original Parts
Choose original parts148 parts in this catalog
Select a part...
STOCK IN STOCKORDER SPECIAL ORDERSOLD SOLD OUT
Your partsAdjust quantities before adding to cart.
No parts selected yet.
-
TYPE89-MGG5-1Upper ReceiverSpecial order$180.00
-
TYPE89-MGG5-2Upper Inner FrameSpecial order$41.50
-
TYPE89-MGG5-3Outer Barrel NutSpecial order$21.20
-
TYPE89-MGG5-4Screw (M3x20 Torx)Special order$7.20
-
TYPE89-MGG5-5Dust CoverSpecial order$13.20
-
TYPE89-MGG5-6Dust Cover Click PinSpecial order$3.20
-
TYPE89-MGG5-7Screw (2x5L)Special order$9.20
-
TYPE89-MGG5-8Bolt CarrierSpecial order$44.00
-
TYPE89-MGG5-9PistonSpecial order$31.40
-
TYPE89-MGG5-10Locking LugSpecial order$9.20
-
TYPE89-MGG5-11Locking Lug SpringSpecial order$3.20
-
TYPE89-MGG5-12Piston Valve SpringSpecial order$5.20
-
TYPE89-MGG5-13Piston ValveSpecial order$9.20
-
TYPE89-MGG5-14Piston InnerSpecial order$13.20
-
TYPE89-MGG5-15Piston Return SpringSpecial order$13.20
-
TYPE89-MGG5-16Vibration Damping TubeSpecial order$7.20
-
TYPE89-MGG5-17Spring Pin (2x10)Special order$3.20
-
TYPE89-MGG5-18O-Ring (13x1)Special order$3.20
-
TYPE89-MGG5-19Firing PinSpecial order$13.20
-
TYPE89-MGG5-20Spring Pin (2x6)Special order$3.20
-
TYPE89-MGG5-21Piston CupSpecial order$15.20
-
TYPE89-MGG5-22Self-Tapping Screw (2x16)Special order$3.20
-
TYPE89-MGG5-23Firing Pin StopperSpecial order$5.20
-
TYPE89-MGG5-24ST Damper SpringSpecial order$5.20
-
TYPE89-MGG5-25Bolt ST DamperSpecial order$25.20
-
TYPE89-MGG5-26Damper PinSpecial order$5.20
-
TYPE89-MGG5-27Piston StopperSpecial order$9.20
-
TYPE89-MGG5-28Bolt Handle WasherSpecial order$5.20
-
TYPE89-MGG5-29Handle Fixing SpringSpecial order$3.20
-
TYPE89-MGG5-30Bolt ShaftSpecial order$40.00
-
TYPE89-MGG5-31Cocking HandleSpecial order$21.40
-
TYPE89-MGG5-32Lower ReceiverSpecial order$140.00
-
TYPE89-MGG5-33Stock Inner RightSpecial order$34.00
-
TYPE89-MGG5-34Stock Inner LeftSpecial order$34.00
-
TYPE89-MGG5-35Tapping Screw (3x8 V-Cut)Special order$9.20
-
TYPE89-MGG5-36Screw (4x14 Truss)Special order$3.20
-
TYPE89-MGG5-37O-Ring (4.5x1.5)Special order$3.20
-
TYPE89-MGG5-38Receiver ShaftSpecial order$13.20
-
TYPE89-MGG5-39Magazine CatchSpecial order$19.20
-
TYPE89-MGG5-40Magazine Catch SpringSpecial order$7.20
-
TYPE89-MGG5-41Magazine Catch ButtonSpecial order$13.20
-
TYPE89-MGG5-42Screw (M2.6x8)Special order$5.20
-
TYPE89-MGG5-43GripSpecial order$36.50
-
TYPE89-MGG5-44Grip Base CoverSpecial order$14.50
-
TYPE89-MGG5-45Base Cover SpringSpecial order$5.20
-
TYPE89-MGG5-46Grip Base Cover LockSpecial order$13.20
-
TYPE89-MGG5-47Spring Pin (3x8)Special order$3.20
-
TYPE89-MGG5-48Spring Pin (3x20)Special order$3.20
-
TYPE89-MGG5-49Hex Nut (M5)Special order$4.40
-
TYPE89-MGG5-50Hex Bolt (M5x15)Special order$7.20
-
TYPE89-89-55Bipod Holder SetSpecial order$50.50
-
TYPE89-89-56Bipod Lever SetSpecial order$29.70
-
TYPE89-89-57Bipod Roller SetSpecial order$28.90
-
TYPE89-89-58Bipod RightSpecial order$34.50
-
TYPE89-89-59Bipod LeftSpecial order$34.50
-
TYPE89-MGG5-56Stock (Assembled/Painted)Special order$50.00
-
TYPE89-MGG5-57Rear Sling SwivelSpecial order$29.90
-
TYPE89-MGG5-58Stock Screw (M5x130)Special order$9.40
-
TYPE89-MGG5-59Buttplate InnerSpecial order$12.05
-
TYPE89-MGG5-60ButtplateSpecial order$22.90
-
TYPE89-MGG5-61Buttplate Screw Set (M6x35)Special order$15.40
-
TYPE89-MGG5-62Rear SightSpecial order$29.90
-
TYPE89-MGG5-63Rear Sight Dial SetSpecial order$31.40
-
TYPE89-MGG5-64Rear Sight BaseSpecial order$20.50
-
TYPE89-MGG5-65Rear Sight Base ShaftSpecial order$7.20
-
TYPE89-MGG5-66Handguard Lock PinSpecial order$17.20
-
TYPE89-MGG5-67Hook Front Right SetSpecial order$13.20
-
TYPE89-MGG5-68Handguard Right AssemblySpecial order$160.00
-
TYPE89-MGG5-69Hook Front Left SetSpecial order$9.20
-
TYPE89-MGG5-70Handguard Left AssemblySpecial order$160.00
-
TYPE89-MGG5-71Outer BarrelSpecial order$90.00
-
TYPE89-MGG5-72Front Sight BaseSpecial order$52.00
-
TYPE89-MGG5-73Front Sight SetSpecial order$17.20
-
TYPE89-MGG5-74Gas RegulatorSpecial order$20.60
-
TYPE89-MGG5-75Bayonet LugSpecial order$23.90
-
TYPE89-MGG5-76Flash Hider NutSpecial order$21.20
-
TYPE89-MGG5-77Flash HiderSpecial order$42.50
-
TYPE89-MGG5-78Gas Cylinder Fixing PinSpecial order$7.20
-
TYPE89-MGG5-79Gas CylinderSpecial order$90.00
-
TYPE89-MGG5-80Recoil SpringSpecial order$23.50
-
TYPE89-MGG5-81Takedown Lock PartSpecial order$32.50
-
TYPE89-MGG5-82Takedown Stopper SetSpecial order$21.20
-
TYPE89-MGG5-83Recoil Spring GuideSpecial order$42.50
-
TYPE89-MGG5-84Damper HolderSpecial order$17.20
-
TYPE89-MGG5-85Damper SpringSpecial order$13.20
-
TYPE89-MGG5-86Screw (M4x10 Torx)Special order$5.20
-
TYPE89-MGG5-87O-Ring (47x61)Special order$3.20
-
TYPE89-MGG5-88Inner BarrelSpecial order$80.00
-
TYPE89-MGG5-89G26 ChamberSpecial order$19.20
-
TYPE89-MGG5-90Chamber RightSpecial order$21.40
-
TYPE89-MGG5-91Chamber LeftSpecial order$21.40
-
TYPE89-MGG5-92HOP LeverSpecial order$11.20
-
TYPE89-MGG5-93O-RingSpecial order$3.20
-
TYPE89-MGG5-94HOP Dial ASpecial order$3.20
-
TYPE89-MGG5-95HOP Dial BSpecial order$3.20
-
TYPE89-MGG5-96HOP Dial CSpecial order$3.20
-
TYPE89-MGG5-97Screw (2x4 Flanged)Special order$5.20
-
TYPE89-MGG5-98Screw (1.4x4)Special order$5.20
-
TYPE89-MGG5-99Inner Frame Front LeftSpecial order$23.50
-
TYPE89-MGG5-100Selector Click SpringSpecial order$3.20
-
TYPE89-MGG5-101Selector Click PinSpecial order$7.20
-
TYPE89-MGG5-102Selector Click Pin RetainerSpecial order$11.20
-
TYPE89-MGG5-103Screw (2x4 Flat)Special order$3.20
-
TYPE89-MGG5-104O-Ring (4x1.2)Special order$3.20
-
TYPE89-MGG5-105Bolt Stop ASpecial order$31.20
-
TYPE89-MGG5-106Bolt Stop BSpecial order$13.20
-
TYPE89-MGG5-107Screw (2x55)Special order$3.20
-
TYPE89-MGG5-108Bolt Stop SpringSpecial order$3.20
-
TYPE89-MGG5-109Hammer ShaftSpecial order$9.20
-
TYPE89-MGG5-110HammerSpecial order$21.40
-
TYPE89-MGG5-111Hammer RollerSpecial order$11.20
-
TYPE89-MGG5-112Roller ShaftSpecial order$13.20
-
TYPE89-MGG5-113Hammer SpringSpecial order$5.20
-
TYPE89-MGG5-114Trigger ShaftSpecial order$9.20
-
TYPE89-MGG5-115SearSpecial order$13.20
-
TYPE89-MGG5-116Sear SpringSpecial order$3.20
-
TYPE89-MGG5-117TriggerSpecial order$19.40
-
TYPE89-MGG5-118Disconnector SpringSpecial order$3.20
-
TYPE89-MGG5-119DisconnectorSpecial order$17.20
-
TYPE89-MGG5-120Trigger SpringSpecial order$3.20
-
TYPE89-MGG5-121Spring Pin (2x6)Special order$3.20
-
TYPE89-MGG5-122Knocker SpringSpecial order$5.20
-
TYPE89-MGG5-123Knocker ASpecial order$9.20
-
TYPE89-MGG5-124Knocker BSpecial order$9.20
-
TYPE89-MGG5-125Knocker ShaftSpecial order$9.20
-
TYPE89-MGG5-126Inner Frame Front RightSpecial order$23.50
-
TYPE89-MGG5-127Screw (M2x8)Special order$5.20
-
TYPE89-MGG5-128Full-Auto SearSpecial order$21.20
-
TYPE89-MGG5-129Full-Auto Sear SpringSpecial order$3.20
-
TYPE89-MGG5-130SelectorSpecial order$19.40
-
TYPE89-MGG5-131Selector LeftSpecial order$21.40
-
TYPE89-MGG5-132Selector Left Fixing SpringSpecial order$5.20
-
TYPE89-MGG5-133Inner Frame Rear LeftSpecial order$20.05
-
TYPE89-MGG5-134Burst Part ShaftSpecial order$9.20
-
TYPE89-MGG5-135Feed Lever BSpecial order$13.20
-
TYPE89-MGG5-136Feed PawlSpecial order$9.20
-
TYPE89-MGG5-137Feed Pawl SpringSpecial order$5.20
-
TYPE89-MGG5-138Feed Pawl PinSpecial order$5.20
-
TYPE89-MGG5-139Feed Arm SpringSpecial order$5.20
-
TYPE89-MGG5-140Feed Lever ASpecial order$13.20
-
TYPE89-MGG5-141Counter SpringSpecial order$5.20
-
TYPE89-MGG5-142Count PlateSpecial order$13.20
-
TYPE89-MGG5-143Inner Frame Rear RightSpecial order$20.05
-
TYPE89-MGG5-144Screw (M3x6 Pan)Special order$5.20
-
TYPE89-MGG5-145Rubber BallSpecial order$3.20
-
TYPE89-MGG5-146Bolt Catch CushionSpecial order$7.20
-
TYPE89-MGG5-147Magazine CaseSpecial order$58.00
-
TYPE89-MGG5-148Magazine BottomSpecial order$19.40
0 items selected$0.00
